Y81-QF-315-QH High-Density Compaction: Hydraulic Scrap Metal Baler

High-Density Compaction: Hydraulic Scrap Metal Baler

Product Overview

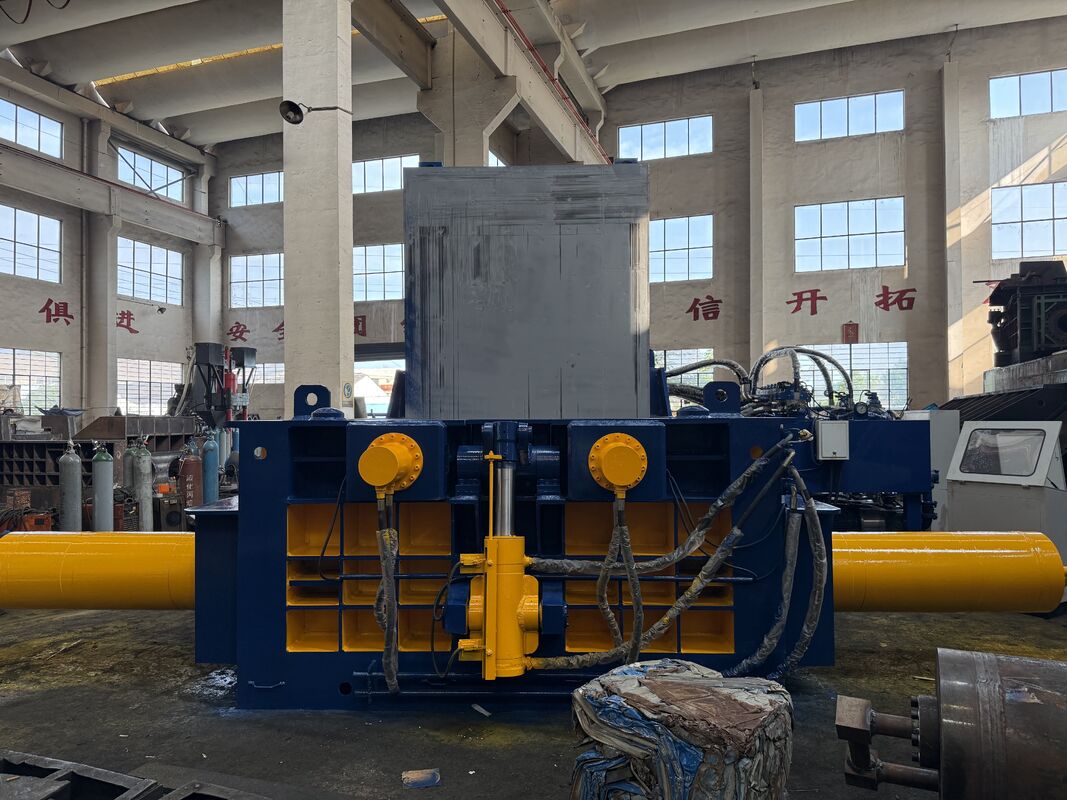

The Y81-QF-315QH hydraulic scrap metal baler is designed for industrial metal recycling and high-density compaction. Engineered for steel mills, scrap yards, and aluminum/copper processing facilities, it ensures consistent bale density and optimal material handling. With a maximum thrust of 3150 kN and bale density exceeding 2000 kg/m³, the machine delivers uniform compaction across a wide range of scrap types.

Applications

• Steel mill scrap compaction
• Automotive scrap recycling
• Aluminum and copper waste management
• Industrial waste reduction
  The baler is suitable for ferrous and non-ferrous metals with varying thickness, providing flexibility for continuous industrial operations.

Core Advantages

• High Compaction Force (3150 kN) → Ensures uniform bale density ≥2000 kg/m³, reducing material volume and improving transport efficiency
• Heavy-Duty Hydraulic Cylinders → Master, side, cover door, and turnout cylinders ensure stable compression under heavy loads
• Reliable Operation → Hydraulic system pressure ≤25 MPa supports continuous operation without performance degradation

How It Works

The baler uses synchronized hydraulic cylinders to compress scrap metal into dense bales. Material is loaded into the box, compressed by master and side cylinders, and the cover door cylinder ensures secure containment. Once compression is complete, the bale is turned out via the turnout cylinder, ready for storage or shipment.

Specifications

How to Choose

Select this model for operations requiring maximum compression and high-density output. Its 3150 kN thrust is ideal for heavy steel scrap, while adjustable bale lengths allow adaptation to material variations.

What Problem It Solves

• Inconsistent bale density in scrap recycling → high compaction force
• Large scrap handling inefficiencies → robust material box and cylinders
• Manual operation risk → supports PLC and remote control

FAQ

Q1: What is the maximum bale size?
A1: The bale size is 600 × 600 mm in width and height, with a variable length of 100–1500 mm depending on the amount of material loaded.

Q2: Can the machine operate continuously?
A2: Yes, the hydraulic system is designed for stable long-term operation under continuous load, supported by durable cylinders and NM500H wear plates.

Q3: What materials can be processed?
A3: The baler handles ferrous and non-ferrous metals, including steel, aluminum, and copper scrap.

Q4: How does the automatic PLC control improve operation?
A4: PLC automatic control ensures consistent bale density, reduces manual operation risk, and allows remote monitoring for high-volume or hazardous environments.and it is with remote control ,one press one bale

Q5: How adjustable is the bale length?
A5: The bale length can be between 100 and 1500 mm based on material input, while width and height remain fixed at 600 × 600 mm, ensuring consistent compaction quality.
